点光源(Short Arc Lamp)光学系统

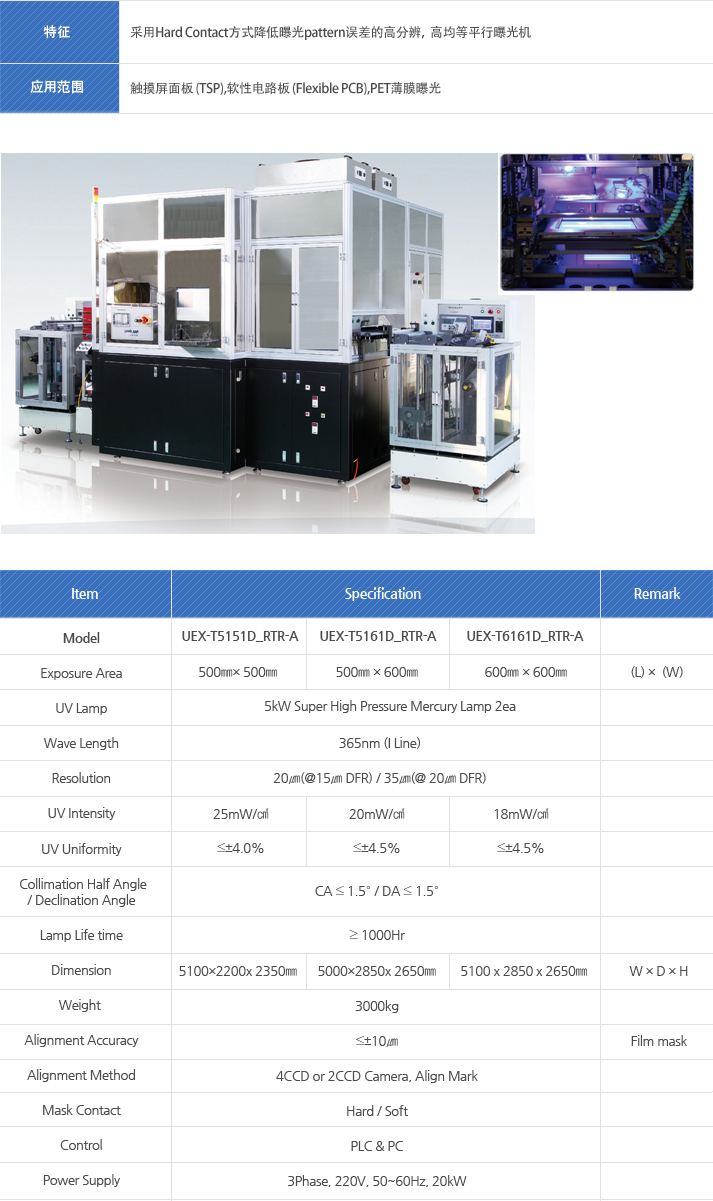

卷对卷(RTR)双面同时UV曝光系统

Model : Exposure Area, UV Lamp, Wave Length, Resolution, UV Intensity, UV Uniformity, Collimation Half Angle, Declination Angle, Lamp Life time, Dimension, Weight, Alignment Accuracy, Alignment Method, Mask Contact, Control
Power Supply

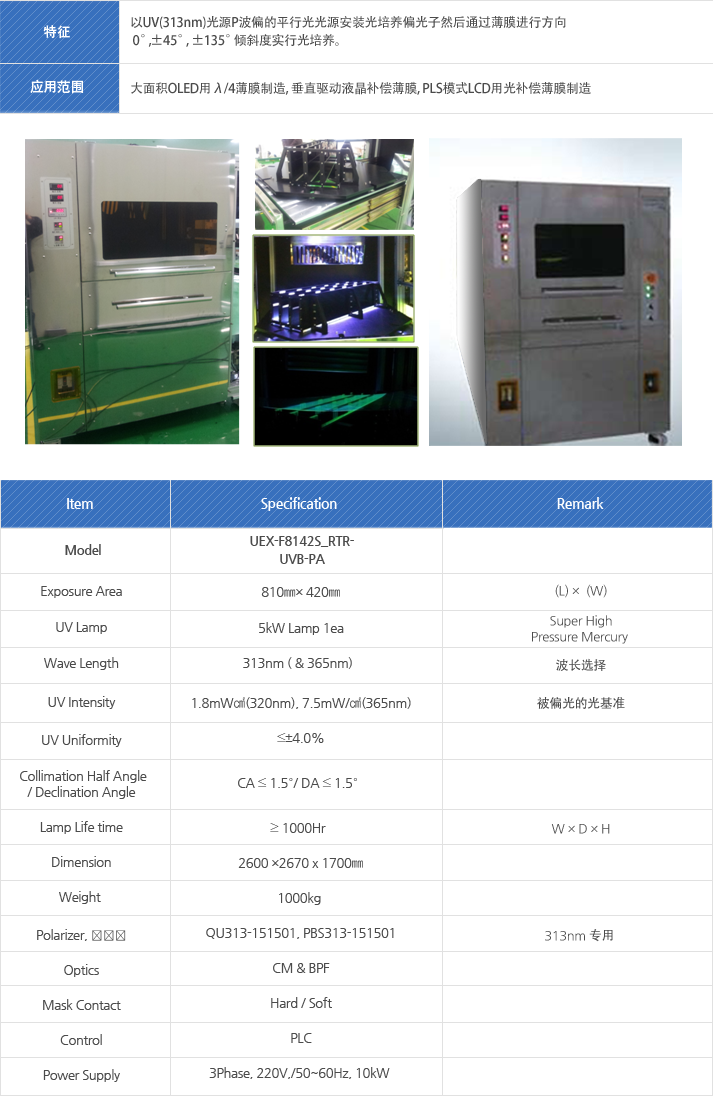

UVB(313nm) & UVA(365nm)光培养偏光平行UV曝光机

model : Exposure Area, UV Lamp, Wave Length, UV Intensity, UV Uniformity, Collimation Half Angle, Declination Angle, Lamp Life time, Dimension, Weight, Polarizer偏光子, Optics, Mask Contact, Control, Power Supply

手动平行UV(曝光)系统

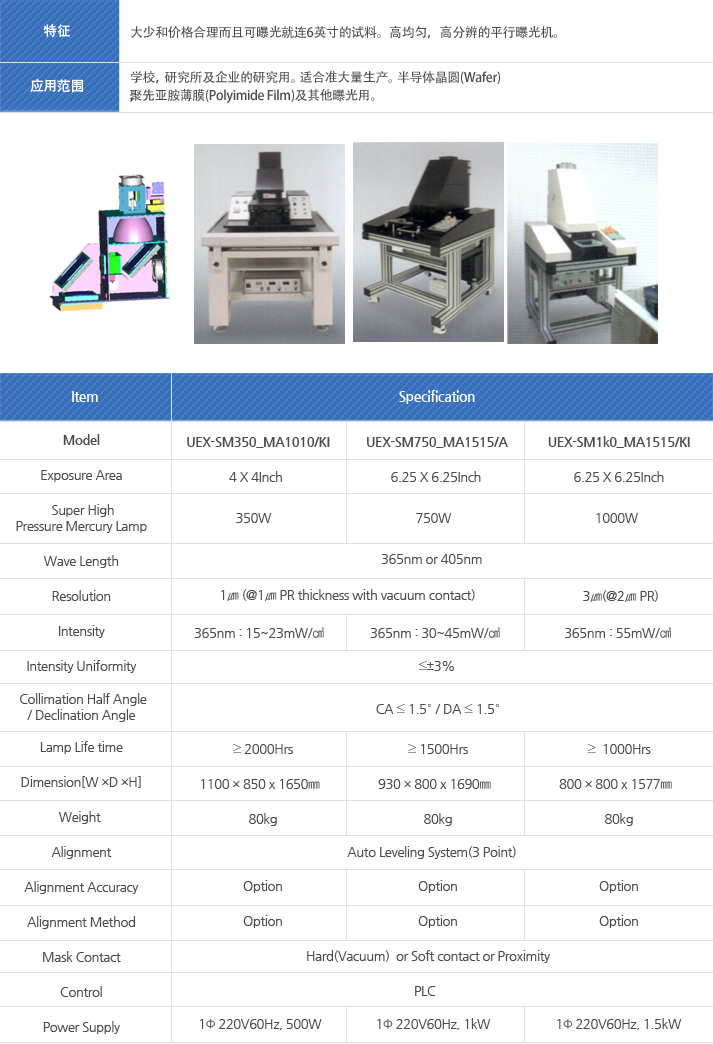

小型平行UV曝光(掩模对准器)系统

Model : Exposure Area, Super High, Pressure Mercury Lamp, Wave Length, Resolution, Intensity, Intensity Uniformity, Collimation Half Angle, Declination Angle, Lamp Life time, Dimension[W ×D ×H], Weight, Alignment, Alignment Accuracy, Alignment Method, Mask Contact, Control, Power Supply

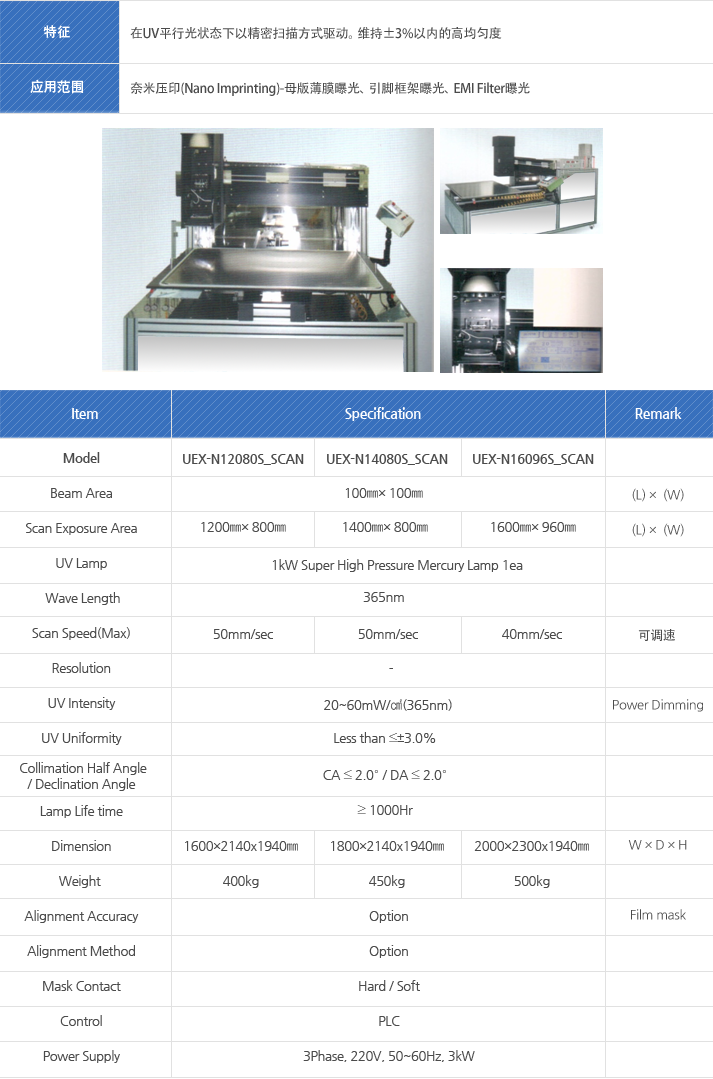

平行光UV扫描曝光系统

Model : Beam Area, Scan Exposure Area, UV Lamp, Wave Length, Scan peed(Max), Resolution, UV Intensity, UV Uniformity, Collimation Half Angle, Declination Angle, Lamp Life time, Dimension, Weight, Alignment Accuracy, Alignment Method, Mask Contact, Control, Power Supply

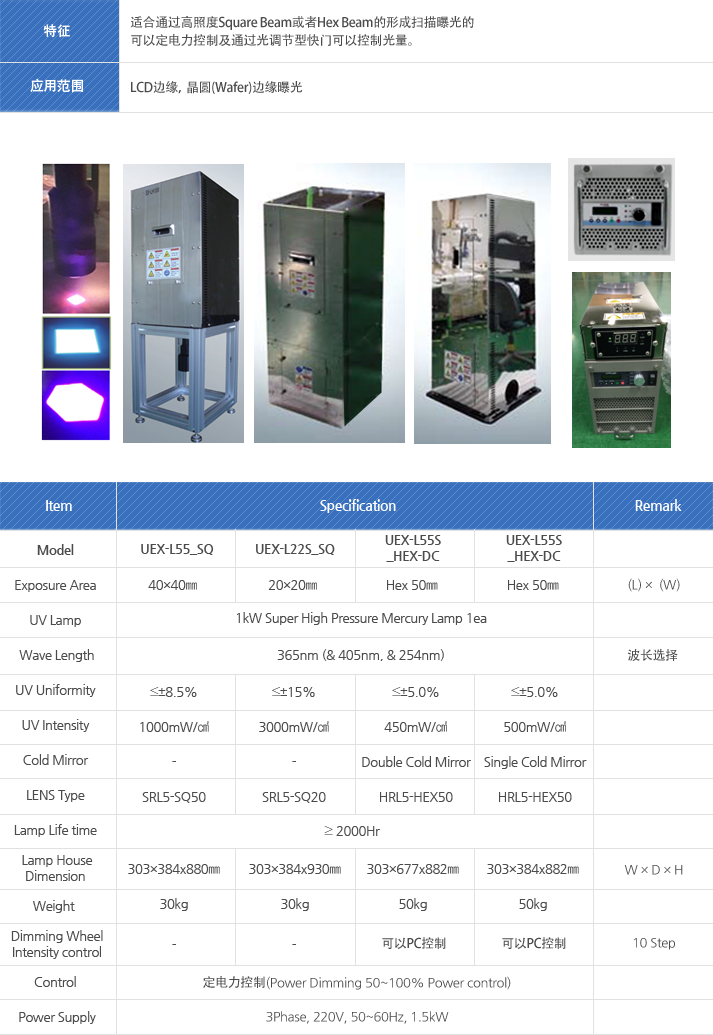

UV边缘曝光

Model : Exposure Area, UV Lamp, Wave Length, UV Uniformity, UV Intensity, Cold Mirror, LENS Type, Lamp Life time, Lamp House, Dimension, Weight, Dimming Wheel, 광량 제어, Control, Power Supply

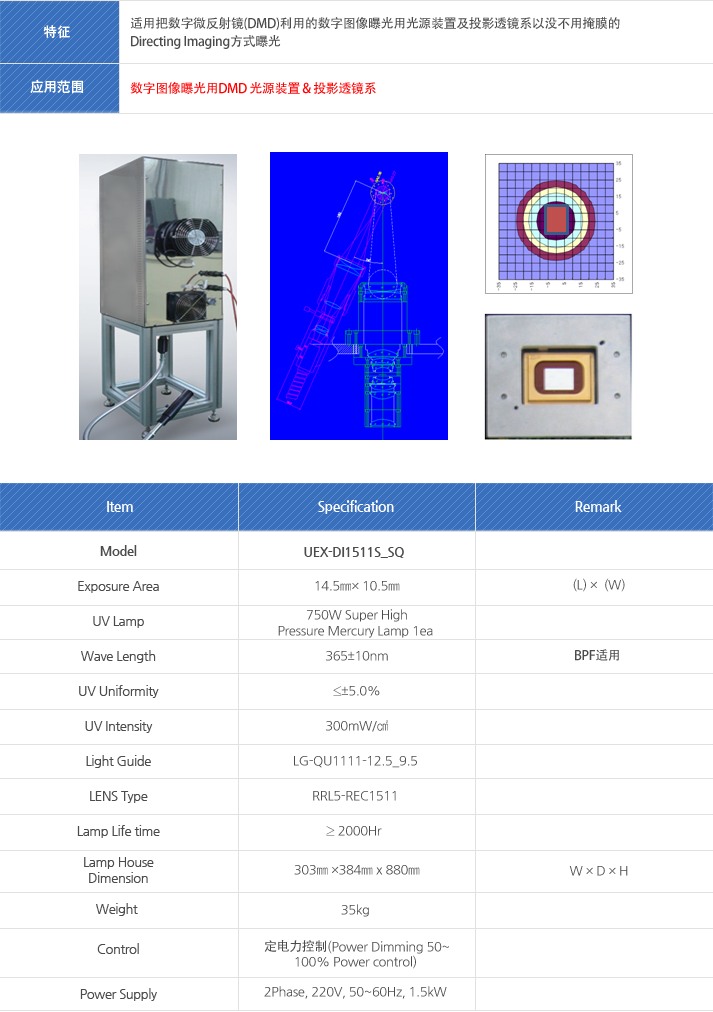

图像曝光用光源装置(DMD Source光源用)

Model : Exposure Area, UV Lamp, Wave Length, UV Uniformity, UV Intensity, Light Guide, LENS Type, Lamp Life time, Lamp House, Dimension, Weight, Control, Power Supply

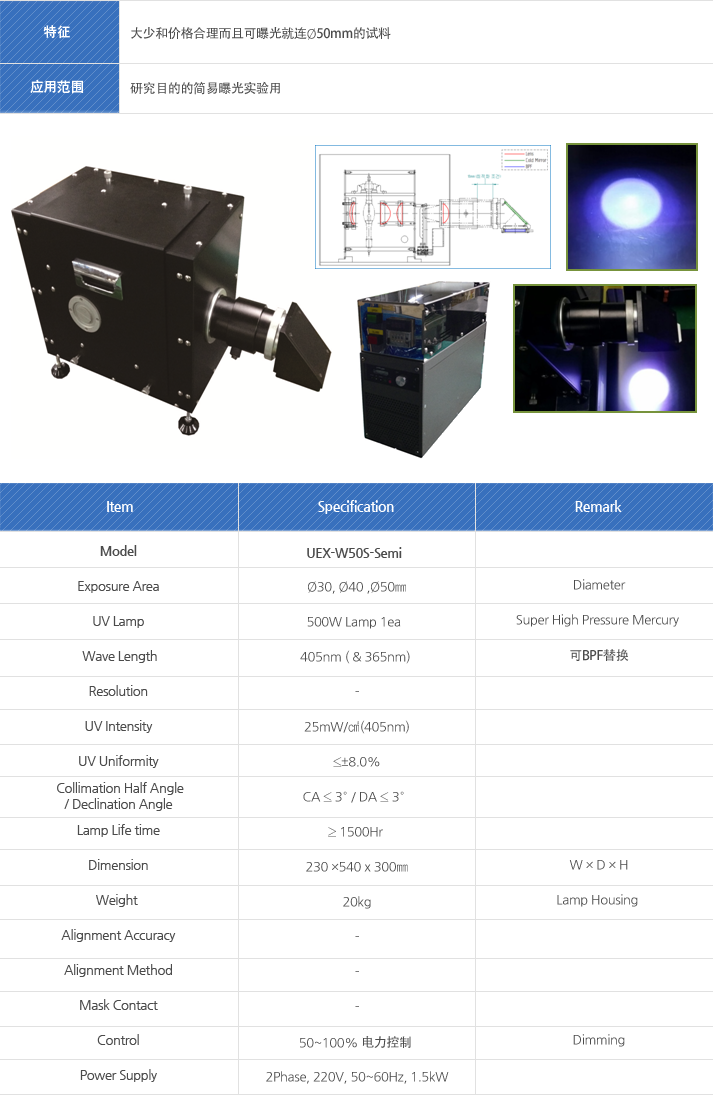

Semi-UV曝光机 & Semi-UV 照射装置

Model, Exposure Area, UV Lamp, Wave Length, Resolution, UV Intensity, UV Uniformity, Collimation Half Angle, Declination Angle, Lamp Life time, Dimension, Weight, Alignment Accuracy, Alignment Method, Mask Contact, Control , Power Supply
